MicroBuffer
Overview

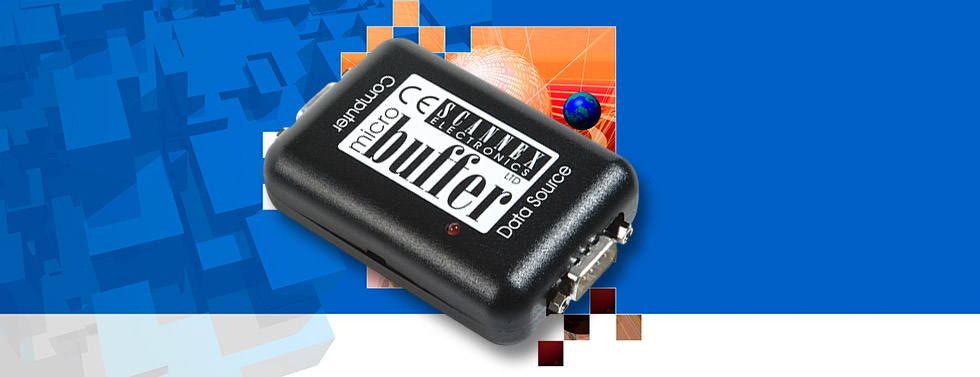

The MicroBuffer is a compact, ultra-low power, RS232 buffer that automatically detects the pin out and communications format of the data source.
The MicroBuffer is line-powered and provides 1Mbyte of non-volatile flash storage.
It is designed to present a normalised interface to the host computer - greatly simplifying installation and maintenance.
Features
-
Line powered.
The MicroBuffer is line powered and requires no external power supplies. It can even get enough power from the line it is logging. -
Non-volatile storage.
High capacity, 1Mbyte, data storage with 10-year data retention without batteries. -
Sophisticated Autobauding.
Simplifies installation and will maintain synchronisation with the data source even if the output speed or format changes. -
Auto-pin detection.
The data will be logged from either pin 2 or pin 3. Standard straight-through RS232 cables can generally be used. -
Support utility.
Simple command line utility for MicroBuffer configuration and interrogation.
Data sheets
MicroBuffer datasheet (US Letter) (201kb) 2012-05-11
MicroBuffer datasheet (UK A4) (212kb) 2012-05-11
